NM-PRO Series
- Category：On/Off Grid Solar Inverter
- Clicknum：次
- Intro：
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1 .0

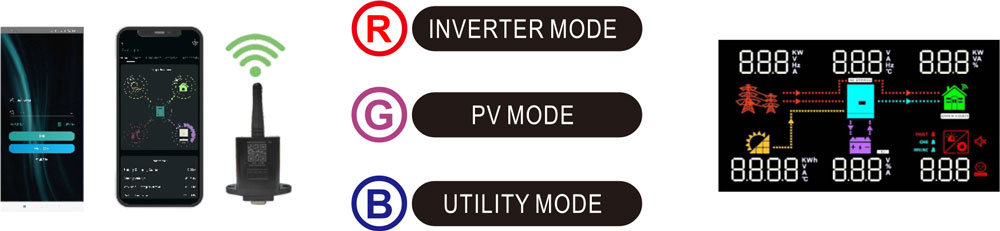

● WIFI&GPRS available for IOS and Android
● Inverter can run without battery
● One-key restoration to factory Settings
- Detail
Features
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1 .0
● WIFI&GPRS available for IOS and Android
● Inverter can run without battery
● One-key restoration to factory Settings
● Built-in Lithium battery automatic activation
● Built-in 120A(for 3. 6KW/6.2KW)/ 140A(for 4.2KW) MPPT Solar charge: max 6200w(for 3. 6kw/4.2kw), max 6500w (for 6.2kw)
● High PV input voltage range(90~ 500VDC)
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
● Built Remove LCD Display and Key
Product Data Sheet
| MODEL | VICTOR NM-PRO-3.6KW | VICTOR NM-PRO-4.2KW | VICTOR NM-PRO-6.2KW |
| Phase | 1-phase | ||
| Maximum PV Input Power | 6200W | 6200W | 6200W |
| Rated Output Power | 3600W/3600VA | 4200W/4200VA | 6200W/6200VA |
| INPUT | |||
| Voltage | 120-140VAC/180VAC | ||
| Selectable Voltage Range | 90-280VAC or 170-280VAC | ||
| Frequency Range | 50/60Hz | ||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 195.5~253VAC | ||
| Nominal Output Current | 15.7A | 18.2A | 27.0A |
| Power Factor | >0.99 | ||
| Feed-in Grid Frequency Range | 49~51±1Hz | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | ||
| Surge Power | 7200W | 8400W | 12400W |
| Efficiency(Peak) | 94% | ||
| Transfer Time | 10 ms (For Personal Computers); 20 ms(For Home Appliances) | ||
| Waveform | Pure sine wave | ||
| No Load Power Consumption | 35W | 42W | 62W |
| BATTERY | |||
| Battery Voltage | 24VDC | 24VDC | 48VDC |
| Floating Charging Voltage | 29.2VDC | 29.2VDC | 58.4VDC |
| Overcharge Protection | 28.2VDC | 28.2VDC | 56.4VDC |
| SOLAR CHARGER & AC CHARGER | |||
| Solar ChargerType | MPPT | ||
| Maximum PV Array Power | 6200W | 6200W | 6500W |
| MPPT Range &Operating Voltage | 90~450VDC | ||
| Maximum PV Array Open Circuit Voltage | 500VDC | ||
| Maximum PV Input Current | 30A | 30A | 40A |
| Maximum AC Charging Current | 120A | 140A | 120A |
| Maximum Solar Charging Current | 120A | 100A | 120A |
| Maximum Solar+AC Charging Current | 120A | 140A | 120A |
| PHYSICAL | |||
| Dimension ,H*W*D(mm) | 440*310*140 | ||
| Cartoon Dimension ,H*W*D(mm) | 555*393*225 | ||
| Net Weight (kgs) | 10.0 | 10.5 | 11.0 |
| Gross Weight(kgs) | 11.0 | 11.5 | 12.0 |
| Communication Interface | RS232/WIFI/Remote LCD/GPRS | ||
| ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
| Operating Temperature | -10℃~50℃ | ||
| STANDARD | |||
| Compliance Safety | CE | ||
