NM-ECO PRO Series
- Category：On/Off Grid Solar Inverter
- Clicknum：次
- Intro：
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0

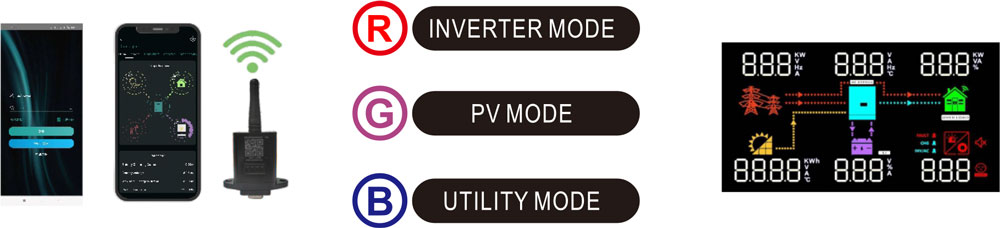

● WIFI& GPRS available for IOS and Android
● Inverter can run without battery
● One-key restoration to factory Settings
- Detail
Features
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0
● WIFI& GPRS available for IOS and Android
● Inverter can run without battery
● One-key restoration to factory Settings
● Built-in Lithium battery automatic activation
● Dual communication ports for Battery communication and Wifi communication
● Built Remove LCD Display and Key
● Built-in 120A MPPT Solar charge:max 6200W (for 3.6KW/4.2KW),max 6500W (for 6.2KW)
● High PV input voltage range(60~500VDC)
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
● Dual output
Product Data Sheet
| MODEL | VICTOR NM-ECO PRO 3.6KW | VICTOR NM-ECO PRO 4.2KW | VICTOR NM-ECO PRO 6.2KW |
| Phase | 1-phase | ||
| Maximum PV Input Power | 6200W | 6200W | 6500W |
| Rated Output Power | 3600W/3600VA | 4200W/4200VA | 6200W/6200VA |
| Maximum Solar Charging Current | 120A | ||
| GRID-TIE OPERATION | |||
| PV INPUT (DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 60VDC/90VDC | ||
| MPPT Voltage Range | 60~450VDC | ||
| Maximum Input Current | 1/18A | 1/18A | 1/22A |
| EFFICIENCY | |||
| Maximum Conversion Efficiency (DC/AC) | 98% | ||
| TWO LOAD OUTPUT POWER | |||
| Full Load | 3600W | 4200W | 6200W |
| Maxium Main Load | 3600W | 4200W | 6200W |
| Maxium Second Load(battery mode) | 1200W | 1400W | 2067W |
| Maxium Load Cut Off Voltage | 26VDC | 26VDC | 52VDC |
| Maxium Load Return Voltage | 27VDC | 27VDC | 54VDC |
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage / Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Frequency Range | 50±1Hz/60±1Hz | ||
| Maximum AC Input Current | 21.1A | 24.7A | 36.4A |
| PV INPUT (DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||
| MPPT Voltage Range | 60~450VDC | ||
| Maximum Input Current | 1/18A | 1/18A | 1/22A |
| BATTERY MODE OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Waveform | Pure sine wave | ||
| Efficiency (DC to AC) | 94% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 24VDC | 48VDC | |
| Maximum Solar Charging Current | 120A | ||
| Maximum AC Charging Current | 100A | ||
| Maximum Solar+AC Charging Current | 120A | ||
| HYBRID OPERATION | |||
| PV INPUT (DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||
| Start-up Voltage / Initial Feeding Voltage | 90VDC/120VDC | ||
| MPPT Voltage Range | 60~450VDC | ||
| Maximum Input Current | 1/18A | 1/18A | 1/22A |
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 195~253VAC | ||
| Nominal Output Current | 15.7A | 18.2A | 27.0A |
| AC INPUT | |||
| AC Start-up Voltage / Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Maximum AC Input Current | 21.1A | 24.7A | 36.4A |
| Maximum AC Charging Current | 100A | ||
| GENERAL | |||
| PHYSICAL | |||
| Dimension ,H*W*D(mm) | 442*358*155 | ||
| Cartoon Dimension ,H*W*D(mm) | 500*415*215 | ||
| Net Weight (kgs) | 8.8 | 9.3 | 9.8 |
| Gross Weight(kgs) | 10.0 | 10.5 | 11.0 |
| INTERACE | |||
| Communication Port | RS232/RS485/REMOTE LCD/WIFI/GPRS/LITHIUM BATTERY | ||
| ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
| Operating Temperature | -10℃~50℃ | ||
| STANDARD | |||
| Compliance Safety | CE | ||
