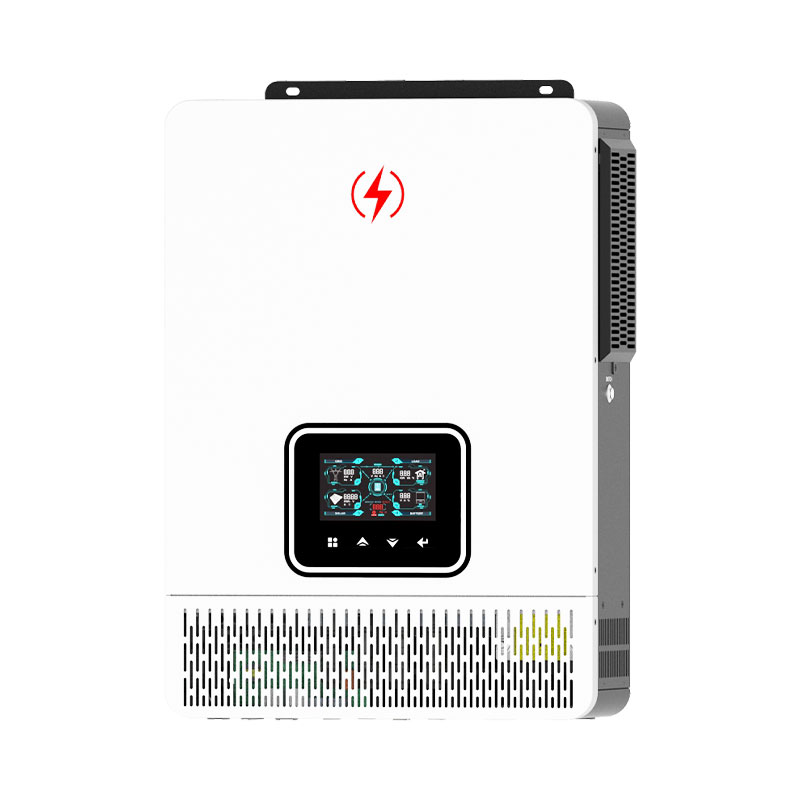

Victor MAX-BL Series
- Category：On/Off Grid Solar Inverter
- Clicknum：次
- Intro：
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0

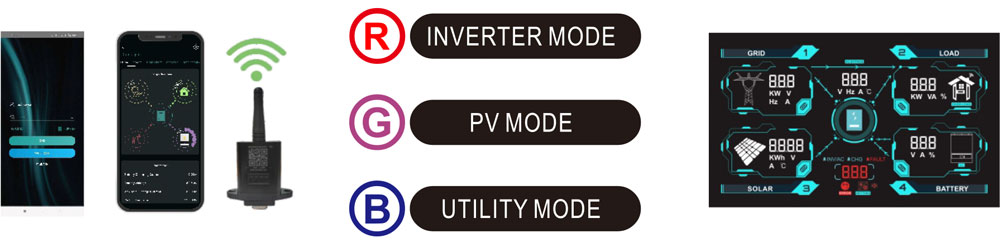

● WIFI&GPRS available for IOs and Android
● Inverter can run without battery
● One-key restoration to factory Settings
● Builtin Lithium battery automatic activation
- Detail
Features
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0
● WIFI&GPRS available for IOs and Android
● Inverter can run without battery
● One-key restoration to factory Settings
● Builtin Lithium battery automatic activation
● Builtin 160A MPPT solar charger(for 8.2kw, 10.2kw)
●Dual communication ports for Battery communication and Wifi co mmunication
● High PV input voltage range(90~500VDC)
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
● Dual output(the second load output power can be set from 20% to 70%)
● Dual PV input
● Touch button
● On Off Grid Work Mode
Product Data Sheet
| MODEL | VICTOR MAX-BL-8.2KW | VICTOR MAX-BL-10.2KW |
| Phase | 1-phase | |
| Maximum PV Input Power | 5400W±540W | |
| Rated Output Power | 8200W/8200VA | 10200W/10200VA |
| Maximum Solar Charging Current | 160A | |
| GRID-TIE OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |
| MPPT Voltage Range | 90~450VDC | |
| Maximum Input Current | 2/18A | |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195~253VAC | |
| Nominal Output Current | 35.6A | 44.3A |
| Power Factor | >0.99 | |
| EFFICIENCY | ||
| Maximum Conversion Efficiency(DC/AC) | 98% | |
| TWO LOAD OUTPUT POWER | ||
| Full Load | 8200W | 10200W |
| Maximum Main Load | 8200W | 10200W |
| Maximum Second Load(battery mode) | power can be set from 20% to 70% | |
| Maximum Load Cut Off Voltage | 52VDC | |
| Maximum Load Return Voltage | 54VDC | |
| OFF-GRID OPERATION | ||
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120~140VAC/180VAC | |
| Acceptable Input Voltage Range | 90~280VAC or 170~280VAC | |
| Frequency Range | 49~51±1Hz/59~61±1HZ | |
| Maximum AC Input Current | 48.2A | 60A |
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| MPPT Voltage Range | 90~450VDC | |
| Maximum Input Current | 2/18A | |
| BATTERY MODE OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Wave Form | Pure sine wave | |
| Efficiency (DC to AC) | 94% | |
| BATTERY&CHARGER | ||
| Nominal DC Voltage | 48VDC | |
| Maximum Solar Charging Current | 160A | |
| Maximum AC Charging Current | 140A | |
| Maximum Solar+AC Charging Current | 160A | |
| HYBRID OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |
| MPPT Voltage Range | 90~450VDC | |
| Maximum Input Current | 2/18A | |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195~253VAC | |
| Nominal Output Current | 35.6A | 44.3A |
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120~140VAC/180VAC | |
| Acceptable Input Voltage Range | 90~280VAC or 170~280VAC | |
| Maximum AC Input Current | 48.2A | 60A |
| Maximum Charging Current | 140A | |
| GENERAL | ||
| PHYSICAL | ||
| Dimension ,H*W*D(mm) | 580*420*135 | |
| Cartoon Dimension ,H*W*D(mm) | 650*490*236 | |
| Net Weight (kgs) | 20.2 | 20.7 |
| Gross Weight(kgs) | 21.7 | 23.2 |
| INTERFACE | ||
| Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERY | |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10°C~50°C | |
| STANDARD | ||
| Compliance Safety | CE | |
