TURBO Series
- Category：On/Off Grid Solar Inverter
- Clicknum：次
- Intro：
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0

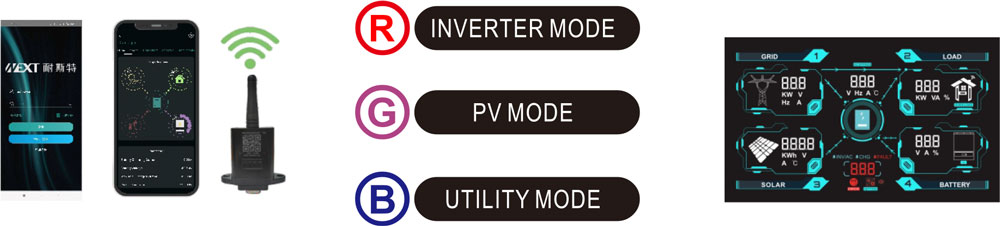

● WIFI&GPRS available for IOS and Android
● Inverter can run without battery
● One-key restoration to factory Settings
- Detail
Features
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0
● WIFI&GPRS available for IOS and Android
● Inverter can run without battery
● One-key restoration to factory Settings
● Built-in 120A MPPT Solar charge: max 6200W(for 3.6KW),max 9000W(for 6KW)
● Built-in Lithium battery automatic activation
● High PV input voltage range(60~500VDC)
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
● Dual output (only single machine)
● Can running three phase output

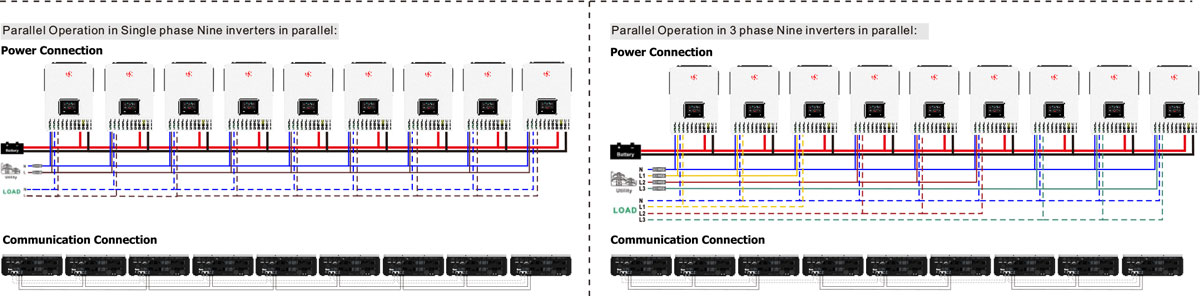

● Parallel operation up to 9 units
● Automatic access to the generator
● Dual PV input (only 6KW)
● Dual communication ports for Battery communication and Wifi communication
Product Data Sheet
| MODEL | VICTOR TURBO 3.6KW | VICTOR TURBO 6KW |
| Phase | 1-phase | |
| Maximum PV Input Power | 6200W | 4500W+4500W |
| Rated Output Power | 3600W/3600VA | 6000W/6000VA |
| Maximum Solar Charging Current | 120A | |
| GRID-TIE OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |
| MPPT Voltage Range | 60~450VDC | |
| Number of MPPT Trakers / Maximum Input current | 1/22A | 2/18A |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195.5~253VAC | |
| Nominal Output Current | 15.2 | 26.1 |
| Power Factor | >0.99 | |
| Feed-in Grid Frequency Range | 49~51±Hz | |
| EFFICIENCY | ||
| Maximum Conversion Efficiency( Solar to AC) | 98% | |
| TWO LOAD OUTPUT POWER(V2.0) | ||
| Full Load | 3600W | 6000W |
| Maximum Main Load | 3600W | 6000W |
| Second Load Range | 720~2520W | 1200W~4200W |
| Maximum Load Cut Off Voltage | 26VDC | 52VDC |
| Maximum Load Return Voltage | 27VDC | 54VDC |
| OFF-GRID OPERATION | ||
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 130-140VAC/180VAC | |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
| Maximum AC Input Current | 21.1A | 35.3A |
| Nominal operating frequency | 47~55±0.3HZ/57~65±0.3HZ | |
| Surge power | 7200W | 12000W |
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage/Initial Feeding Voltage | 130VDC/120VDC | |
| MPPT Voltage Range | 60~450VDC | |
| Number of MPPT Trakers / Maximum Input current | 1/22A | 2/18A |
| BATTERY MODE OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Wave Form | Pure sine wave | |
| Efficiency (DC to AC) | 94% | |
| HYBRID OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |
| MPPT Voltage Range | 60~450VDC | |
| Number of MPPT Trakers/Maximum Input current | 1/22A | 2/18A |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195.5~253VAC | |
| Nominal Output Current | 15.2 | 26.1 |
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
| Maximum AC Input Current | 21.1A | 35.3A |
| BATTERY MODE OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Efficiency (DC to AC ) | 94% | |
| BATTERY & CHARGE | ||
| Nominal DC Voltage | 24VDC | 48VDC |
| Maximum AC Charging Current | 100A | |
| Maximum Solar Charging Current | 120A | |
| Maximum Solar+AC Charging Current | 120A | |
| GENERAL | ||
| PHYSICAL | ||
| Dimension ,H*W*D(mm) | 481*344*120 | |
| Cartoon Dimension ,H*W*D(mm) | 550*415*200 | |
| Net Weight (kgs) | 10 | 11 |
| Gross Weight(kgs) | 11 | 12.5 |
| INTERACE | ||
| Parallel Function | 9 units | |
| Communication Port | RS232/RS485/WIFI/CAN/PARALLEL | |
