LS Series
- Category：Off Grid Solar Invetert
- Clicknum：次
- Intro：
● Pure sine wave solar inverter

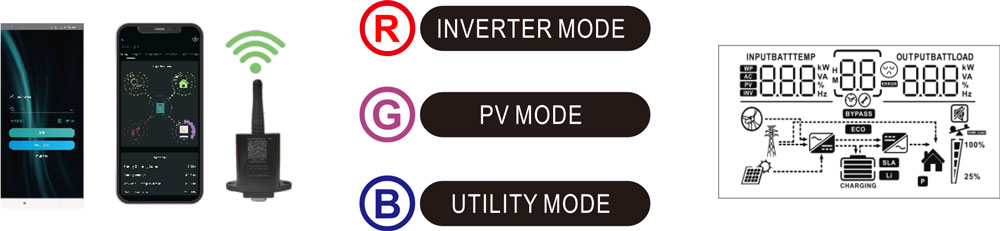

● WIFI&GPRS available for IOS and Android
● Builtin 60A MPPT solar charger
● PV input voltage range 20-150VDC(for 2000W),30~150VDC(for 3200W)
● Built-in anti-dust kit for harsh environment
- Detail
Features
● Pure sine wave solar inverter
● WIFI&GPRS available for IOS and Android
● Builtin 60A MPPT solar charger
● PV input voltage range 20-150VDC(for 2000W),30~150VDC(for 3200W)
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
● Meet rich customized demands
● Solar energy is provided directly to the load first
● Regular charging of municipal electricity
● Output mode diversity to make better use of solar energy
● Statistical Power Generation
● Built-in Clock Function
● Controllable Discharge Current
● Industry's First 12V with 2000w capacity
Product Data Sheet
| MODEL | VICTOR LS-2000-12 | VICTOR LS-3200-24 |
| Rated Power | 2000W/2000VA | 3200W/3200VA |
| AC INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) | |
| Frequency Range | 50 Hz/60Hz(Auto sensing) | |
| AC OUTPUT | ||
| AC Voltage Regulation | 230VAC ± 5% | |
| Surge Power | 2000VA | 3200VA |
| Efficiency(Peak) PV to INV | 98% | |
| Efficiency(Peak) Battery to INV | 92% | |
| Transfer Time | 10ms | |
| BATTERY | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 32VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Power | 900W | 1800W |
| MPPT Range @ Operating Voltage | 20~150VDC | 30~150VDC |
| Maximum PV Array Open Circuit Voltage Solar | 150VDC | |
| Maximum Solar Charging Current | 60A | |
| Maximum AC Charging Current | 80A | |
| Maximum Solar+AC Charging Current | 140A | |
| PHYSICAL | ||
| Dimension, H*W*D(mm) | 416*291*112 | |
| Cartoon Dimension, H*W*D(mm) | 490*370*190 | |
| Net Weight(kgs) | 6.6 | 7.0 |
| Gross Weight(kgs) | 7.5 | 7.9 |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10°C to 60°C | |
| STANDARD | ||
| Compliance Safety | CE | |
