NML Series
- Category：Off Grid Solar Invetert
- Clicknum：次
- Intro：
● Pure sine wave solar inverter

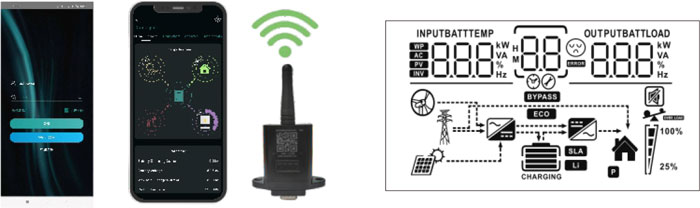

● WIFI&GPRS available for IOS and Android
● Built-in 80A MPPT solar charger
● High PV input voltage range( 30~400VDC)
● Built-in anti-dust kit for harsh environment
- Detail
Features
● Pure sine wave solar inverter
● WIFI&GPRS available for IOS and Android
● Built-in 80A MPPT solar charger
● High PV input voltage range( 30~400VDC)
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
● Meet rich customized demands
● Compatible with lithium battery
● Solar energy is provided directly to the load first
Product Data Sheet
| MODEL | VICTOR NML-2000-12 | VICTOR NML-3200-24 |
| Rated Power | 2000VA/1600W | 3200VA/3000W |
| AC INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) | |
| Frequency Range | 50 Hz/60Hz(Auto sensing) | |
| AC OUTPUT | ||
| AC Voltage Regulation | 230VAC± 5% | |
| Surge Power | 4000VA | 6400VA |
| Efficiency(Peak) PV to INV | 98% | |
| Efficiency(Peak) Battery to INV | 94% | |
| Transfer Time | 10 ms(For Personal Computers); 20 ms (For Home Appliances) | |
| BATTERY | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 33VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Power | 2000W | 3000W |
| MPPT Range @ Operating Voltage | 30~400VDC | |
| Maximum PV Array Open Circuit Voltage Solar | 400VDC | |
| Max Input Current | 1/13A | |
| Maximum Solar Charging Current | 80A | |
| Maximum AC Charging Current | 60A | |
| Maximum Solar+AC Charging Current | 80A | |
| PHYSICAL | ||
| Dimension. H*W*D(mm) | 357*273*95 | |
| Cartoon Dimension ,H*W*D(mm) | 435*335*165 | |
| Net Weight(kgs) | 4.6 | 4.8 |
| Gross Weight(kgs) | 5.6 | 5.8 |
| Communication Interface | RS232/GPRS/WIFI | |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10°C to 50°C | |
| STANDARD | ||
| Compliance Safety | CE | |
