RS Series
- Category：Off Grid Solar Invetert
- Clicknum：次
- Intro：
● Pure sine Wave solar inverter
● Big LCD Screen with richer content
● Two communication Ports for BMS and WiFi
● Dual AC output available for 4.2KVA and 7KVA
● RGB Lighting for different working mode
- Detail
Features
● Pure sine Wave solar inverter
● Big LCD Screen with richer content
● Two communication Ports for BMS and WiFi
● Dual AC output available for 4.2KVA and 7KVA
● RGB Lighting for different working mode
● Inverter running with or without battery
● Built-in Lithium Battery automatic activation
● Lithium battery intelligent charge control system : adjust the inverter charging current according to the battery information.
● Internal clock function for showing PV power generation and setting AC charging time and running loads time by user
● Offline software upgrade function for adding new functions and fixing software errors
● Wide PV input voltage range 55 450VDC
● Built in 80A and 110A MPPT solar charger

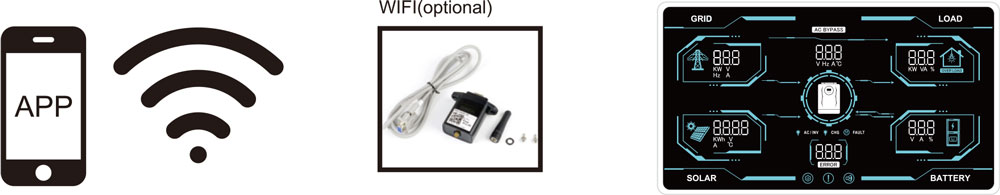

● WIFI available for Ios and Android
Product Data Sheet
| MODEL | RS-2200 | RS-3200 | RS-4200 | RS-4200 | RS-7000 |
| Rated Power | 2200VA/1800W | 3200VA/3000W | 4200VA/3800W | 4200VA/3800W | 7000VA/6200W |
| INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) | ||||
| Frequency Range | 50 Hz/60Hz(Auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation(Batt.Mode) | 230VAC± 5% | ||||
| Surge Power | 4400VA | 6400VA | 8400VA | 8400VA | 14000VA |
| Transfer Time | 10ms(for personal computers) ; 20ms(for home appliances) | ||||
| Wave form | Pure Sine Wave | ||||
| TWO LOAD OUTPUT POWER | |||||
| Full Load | 1800W | 3000W | 3800W | 3800W | 6200W |
| Maximum Main Load | - | - | 3800W | 3800W | 6200W |
| Maximum EPS Load(Battery mode) | - | - | 1200W | 1200W | 2000W |
| Main Load Cut Off Voltage | - | - | 22V | 44V | 44V |
| Main Load Return Voltage | - | - | 27V | 54V | 54V |
| BATTERY & AC CHARGER | |||||
| Battery Voltage | 120VDC | 24VDC | 24VDC | 48VDC | 48VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC | 54VDC | 54VDC |
| Over Charge Protection | 15.5VDC | 31VDC | 31VDC | 61VDC | 61VDC |
| Maximum Charge Current | 60A | 80A | 60A | 80A | |
| SOLAR CHARGER | |||||
| MAX. PV Array Power | 2000VA | 3000VA | 6000VA | ||
| MPPT Range@ Operating Voltage | 55-450VDC | ||||
| Maximum PV Array Open Circuit Voltage | 450VDC | ||||
| Maximum Charging Current | 80A | 110A | 80A | 110A | |
| Maximum Efficiency | 98% | ||||
| PHYSICAL | |||||
| Dimension ,H*W*D(mm) | 405*286*98 | 423*300*120 | 423*300*120 | ||
| Net Weight (kgs) | 5 | 5.5 | 6.8 | 6.9 | 8 |
| Communication Interface | Two communication One RS485 port for BMS ports; Another RS485/RS232 for remote monitoring | ||||
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | -10°C to 55°C | ||||
| Storage Temperature | -15°C to 60°C | ||||
