5kWh LiFePL Battery

5kWh LiFePL Battery

  • Category:LiFePL Battery
  • Clicknum:
  • Intro:
    Natural cooling,wide temperature tol eranceand no noisy internal fans
  • Detail

Easy access

Accessible through a LCD touch screen and through the web


BMS

More available battery energywith pack optimization Batteries flexible expansion in stages


Expansion

suport for expanding capacity and support greater output power at the same time


REMOTE MONITORING

Monitor your system remotely via smartphone or web portal


Safe

Sleep-class silence Long battery life


NATURAL COOLING

Natural cooling,wide temperature tol eranceand no noisy internal fans




LiFePL Lithium Battery

Longer Cycle Life: Offers up to 15 times longer cycle life and 5 times longer float/calendar life than lead acid battery.

Lighter Weight: About 40% weight of a comparable lead acid battery, save up to 60% in weight.

Quick Charge: Short charge time compared with lead acid battery.

Low Self-Discharge: Lower self- discharge compared with lead acid battery, longer storage time without recharging.

Superior Safety: Multi-protection methods built inside to protect the battery from overcharge, over discharge and short circuit situation.

High Efficient: Higher round-trip energy efficiency of the average (92%) than lead acid battery 80% (discharge from 100% to 0% and back to 100%




Specifications

Technical Parameters
Nominal voltage51.2V
Nominal capacity100Ah

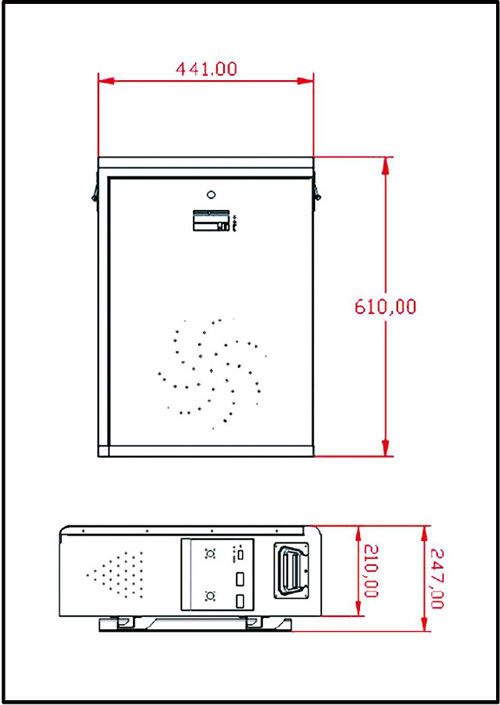

DimensionsLength: 610±2mm (24.02inch)
Width: 441±2mm (17.36inch)
Height: 210±2mm (8.27inch)
Total height: 274±2mm (8.27inch)
Approx. weight63kg (138.89lbs)±2.5kg


Characteristics

Electrical Parameters (25°C)Rated Voltage51.2V
Rated Capacity (C5)100Ah@25°C
Energy5120Wh
Months Self Discharge<3%
Charge Efficiency99.3%@ 0.2C
Terminal DiameterM8
Internal resistance (Fully charged, 25°C)<30mΩ
Cycle life>8000 cycles @ 0.2C 80%D.O.D
Capacity affected by temperature40°C101%
25°C100%
0°C90%
-10°C75%
Nominal operating temperature25°C± 3°C (77°F± 5°F)
Operating temperature rangeDischarge- 20°C~ 60°C (4°F ~ 140°F)
Charge0°C~ 45°C (32°F ~ 113°F)
Storage0°C~ 40°C (32°F ~ 104°F)
Water Dust ResistanceIP54
Charge Voltage58.4V
Standard Charge Mode (25°C±2°C,<75%RH)0.2CA Constant Current to 58.4V, then Constant Voltage 58.4V until the current drops to 0.02CA, before use, rest 30 minutes
Charge Current40A
Maximum Charge Current100A
Charge Cut off Voltage58.4V
Continuous Discharge Current100A
Maximum Pulse Current150A (<500us)
Discharge Cut Off Voltage43.2V
Communicate Protocol (optional)RS485
SOC (optional)LED/PC Software
Optional add-on featuresBluetooth/Heating
MechanicalCells16 Strings
ContainerMetal


Outer dimensions(mm)
