TITAN Series
- Category：Car Inverter/Power Inverter
- Clicknum：次
- Intro：
● Buit-in MPPT solar charge controller
● Pure sine wave inverter
● Selectable charging current
● Selectable input voltage range
● AC/Battery input priority Via LCD setting
- Detail
Features
● Buit-in MPPT solar charge controller
● Pure sine wave inverter
● Selectable charging current
● Selectable input voltage range
● AC/Battery input priority Via LCD setting
● Compatible with generator power
● Auto Restart while AC is recovering
● Overload and short circuit protection
● Color LCD display Support Lithium Battery
● WIFI&GPRS available for IOS and android
● Dual communication ports for Battery communication and Wifi communication

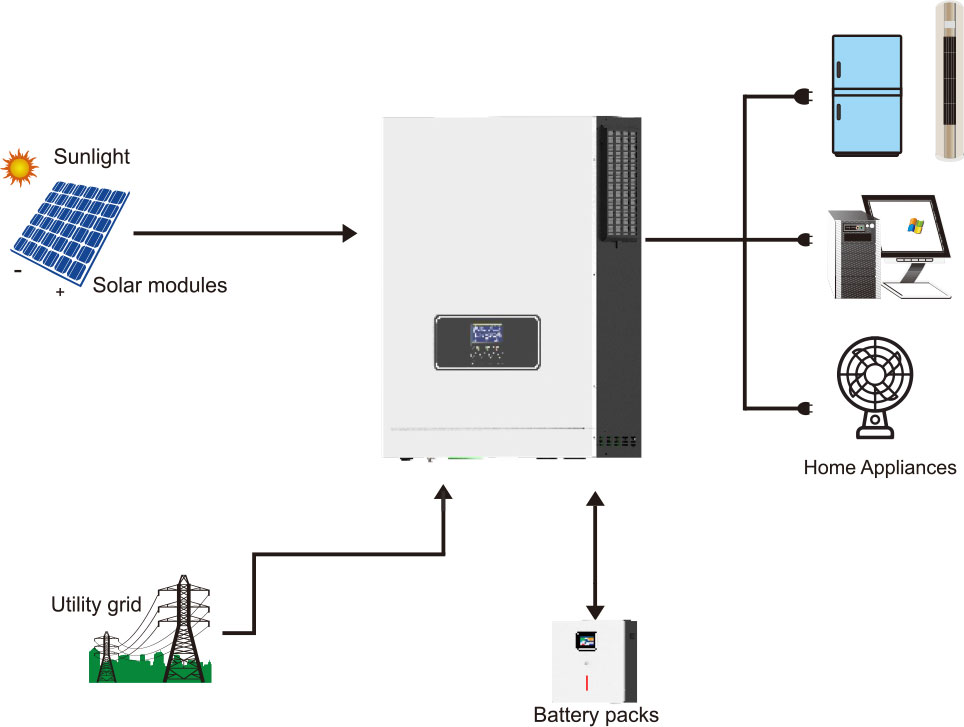

Connection
Product Data Sheet
| MODEL | 3024E | 5048E |
| Rated Power | 3000W | 5000W |
| INPUT | ||
| Selectable Voltage Range | Wide Range:90VAC-280VAC / Narrow Range:170VAC-280VAC | |
| Frequency Range | 40HZ-70Hz(50Hz/60Hz) | |
| OUTPUT | ||
| AC Voltage Regulation(Batt.Mode) | 200/210/220/230/240VAC | |
| Surge Power | 9000VA | 15000VA |
| Efficiency(Peak) | 88% | |
| Transfer Time | <10ms | |
| Wave Form | Pure Sine Wave | |
| BATTERY& AC CHARGER | ||
| Battery Voltage | 24V | 48V |
| Charge Current | 50A | 45A |
| Battery Voltage Range | 20VDC~32VDC | 40VDC~64VDC |
| Battery Low Voltage Alarm | 21VDC±0.6V | 42VDC±1.2V |
| Battery Low Voltage Shutdown | 20VDC±0.6V | 40VDC±1.2V |
| SOLAR CHARGER | ||
| Charge Voltage | 28V-150V | 52V-150V |
| Max.PV Input Voltage | 150V±3V | |
| Max.PV Input Power | 2400W | 4800W |
| Max. Charging Current | 60A | 80A |
| Battery Ripple Voltage | <1% | |
| Efficiency | ≥ 99.5% | |
| PHYSICAL | ||
| Dimension. H*W*D(mm) | 520*342*155 | 560*410*167 |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non~condensing) | |
| Operating Temperature | -10℃ to 50℃ | |
| Storage Temperature | -15℃ to 60℃ | |
