SAK Series
- Category：Car Inverter/Power Inverter
- Clicknum：次
- Intro：
● Pure sine wave inverter
● Maximum efficiency 90%
● Intelligent speed regulation of fan:the fan speed will be controlled according to the load and the temperature inside the fan
● Protection funtion:input under voltage protection, input over voltage protection,overload protection, short circuit protection,over temperature protection
● Application:home,ffice,vehice,yacht and other ocasions
- Detail
Features
● Pure sine wave inverter
● Maximum efficiency 90%
● Intelligent speed regulation of fan:the fan speed will be controlled according to the load and the temperature inside the fan
● Protection funtion:input under voltage protection, input over voltage protection,overload protection, short circuit protection,over temperature protection
● Application:home,ffice,vehice,yacht and other ocasions
Remote(optional)

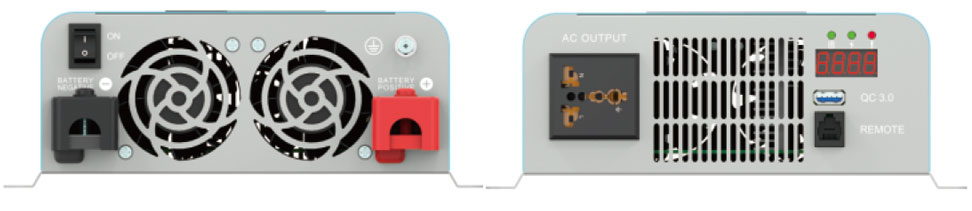

Overview

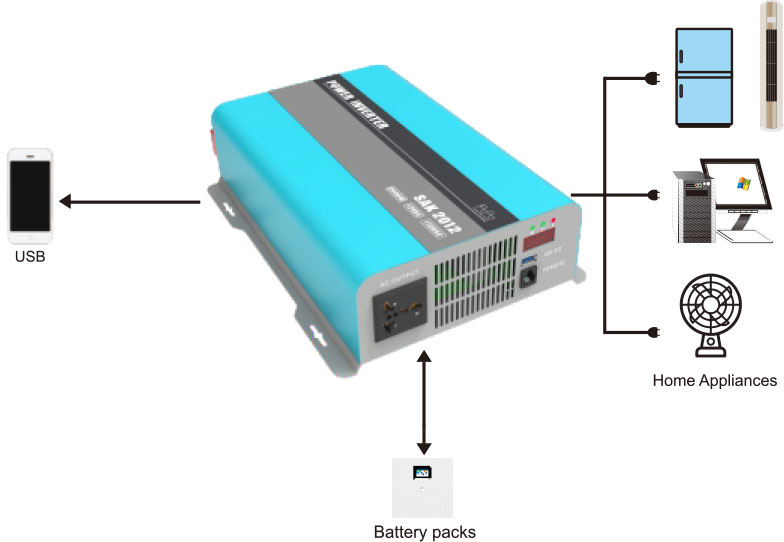

Connection
Product Data Sheet
| MODEL | SAK-0312E SAK-0312 | SAK-0324E SAK-0324 | SAK-0612E SAK-0612 | SAK-0624E SAK-0624 | SAK-1212E SAK-1212 | SAK-1224E SAK-1224 | SAK-2012E SAK-2012 | SAK-2024E SAK-2024 |
| DC INPUT | ||||||||
| Rated Input Voltage | 12V | 24V | 12V | 24V | ||||
| Rated Current | 30A | 15A | 56A | 28A | ||||
| Maximum Efficiency | 90% | |||||||
| Battery Type | Lead acid/Lithium battery | |||||||
| AC OUTPUT | ||||||||
| Rated Power | 300W | 600W | 1200W | 2000W | ||||
| AC Voltage | 220V/110V | |||||||
| Frequency | 50Hz/60Hz | |||||||
| Wave Form | PURE SINE WAVE | |||||||
| INPUT PROTECTION | ||||||||
| Battery Low Voltage Alarm | 12V | 24V | ||||||
| Battery Low Voltage Recovery | 10.5V±0.5V | 21.0V±0.5V | ||||||
| Battery Low Voltage Shutdown | 11.0V±0.5V | 22.0V±0.5V | ||||||
| Battery High Voltage Alarm | 10.0V±0.5V | 20.0V±0.5V | ||||||
| Battery High Voltage Alarm Recovery | 15.0V±0.5V | 30.0V±0.5V | ||||||
| Battery High Voltage Shutdown | 14.5V±0.5V | 29.0V±0.5V | ||||||
| OUTPUT PROTECTION | ||||||||
| Output Short Circuit Protection | After the fault is eliminated, it can be rebooted | |||||||
| Overload Protection | 110%≤Load<125%, 1 minute shutdown; 125%≤Load<150%, 30s shutdown; 150%≤Load,shut down immediately; | |||||||
| Output Temperature Protection | Heat dissipation temperature>90℃ | |||||||
| OPERATING ENVIRONMENT | ||||||||
| Operating Temperature | 0℃~40℃ | |||||||
| Humidity | 0-80% | |||||||
| OTHER | ||||||||
| Dimension(mm) | 190*151*77 | 210*151*77 | 260*161*82 | 300*191*82 | 300*171*82 | |||
| Remote Control Switch Interface | Standard Configuration | |||||||
| USB | 5V 2A | |||||||
