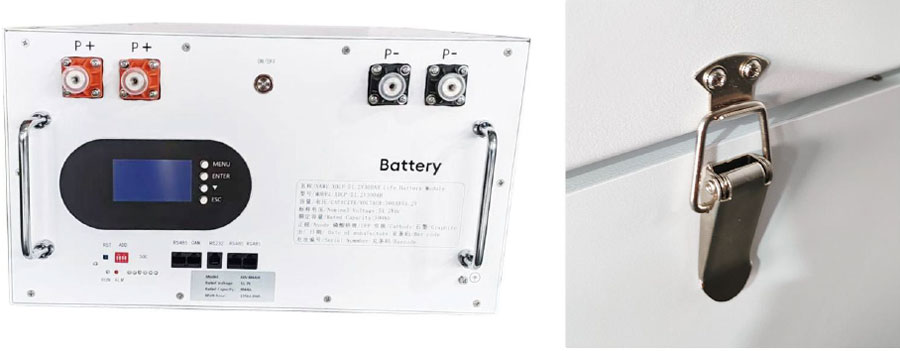

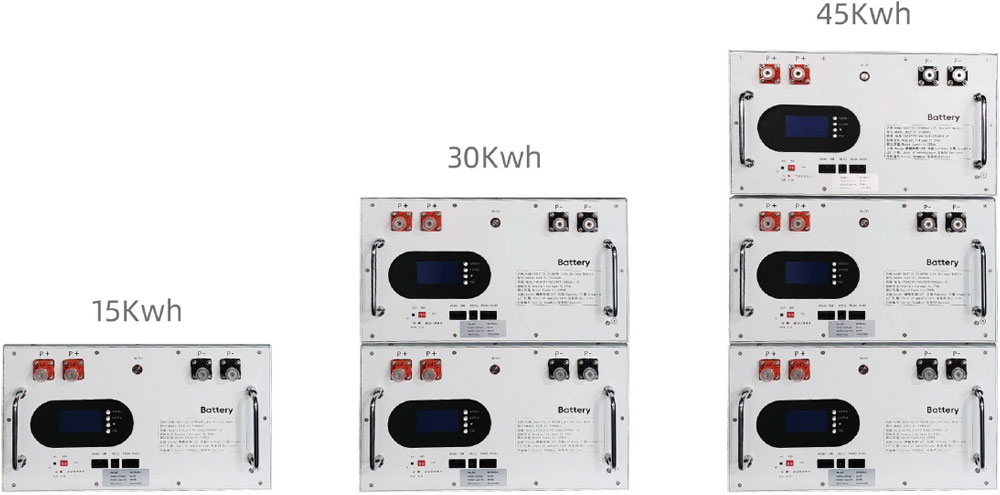

15Kwh~45Kwh Stackable Mounted Solar Energy Storange Battery

Category：Cabinet Type LiFePL Battery
Clicknum：次
Intro：
High Efficient: Higher round-trip energy efficiency of the average (92%) than lead acid battery 80% (discharge from 100% to 0% and back to 100% charged).

Request A Quote

Detail

Product Features

● Snap on stacking, more convenient and efficient

● Stackable Mounted

● Built-in BMS

● Energy dense

● Long cycle life

● Climate tolerant

● Maintenance-free

● Support customization

● Support parallel operation

Applicable Scope

● UPS

● Solar storage

● Central office

● Base transceiver station

● Electronic cash registers

● Telecommunication systems

● Communication equipments

● Switching applications and more

● Microprocessor based office machine

Specifications

Nominal voltage		51.2V
Nominal capacity		300Ah
Dimensions	Length	769±2mm (30.28inch)
	Width	460±2mm (18.11inch)
	Height	270±2mm (3.24inch)
	Total height	133±2mm (10.63inch)
	Approx. weight	120kg (264.55lbs)±2.5kg

Characteristics

Electrical Parameters (25°C)	Rated Voltage	51.2V
	Rated Capacity (C5)	300Ah@25°C
	Energy	15360Wh
	Months Self Discharge	<3%
	Charge Efficiency	99.5%@ 0.2C
Terminal Diameter		M8
Internal resistance (Fully charged, 25°C)		<8mΩ
Cycle life		>8000 cycles @ 0.2C 80%D.O.D
Capacity affected by temperature	40°C	101%
	25°C	100%
	0°C	90%
	-10°C	75%
Nominal operating temperature		25°C± 3°C (77°F± 5°F)
Operating temperature range	Discharge	-20°C~ 60°C (-4°F ~ 140°F)
	Charge	0°C~ 45°C (32°F ~ 113°F)
	Storage	0°C~ 40°C (32°F ~ 104°F)
Water Dust Resistance		IP65
Charge Voltage		58.4V
Standard Charge Mode (25°C±2°C,<75%RH)		0.2CA Constant Current to 58.4V, then Constant Voltage 58.4V until the current drops to 0.02CA, before use, rest 30 minutes
Charge Current		60A
Maximum Charge Current		200A
Charge Cut off Voltage		58.4V
Continuous Discharge Current		200A
Maximum Pulse Current		300A (<500us)
Discharge Cut Off Voltage		43.2V
Communicate Protocol (optional)		RS485/CAN
SOC (optional)		LED/PC Software
Optional add-on features		Bluetooth/Heating
Mechanical	Cells	16 Strings
	Container	Metal

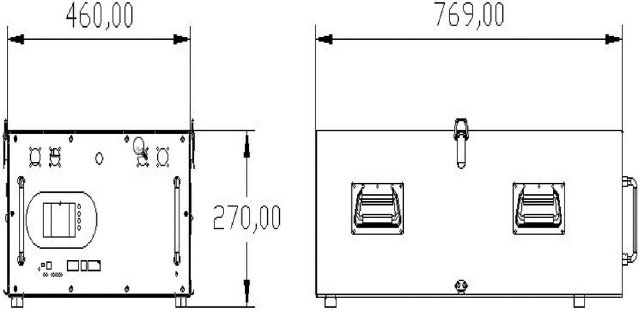

Outer dimensions(mm)

LiFePL Lithium Battery

Longer Cycle Life: Offers up to 15 times longer cycle life and 5 times longer float/calendar life than lead acid battery.

Lighter Weight: About 40% weight of a comparable lead acid battery, save up to 60% in weight.

Quick Charge: Short charge time compared with lead acid battery.

Low Self-Discharge: Lower self discharge compared with lead acid battery, longer storage time without recharging.

Superior Safety: Multi-protection methods built inside to protect the battery from overcharge, over discharge and short circuit situation.

High Efficient: Higher round-trip energy efficiency of the average (92%) than lead acid battery 80% (discharge from 100% to 0% and back to 100% charged).
